Direct Expansion Type

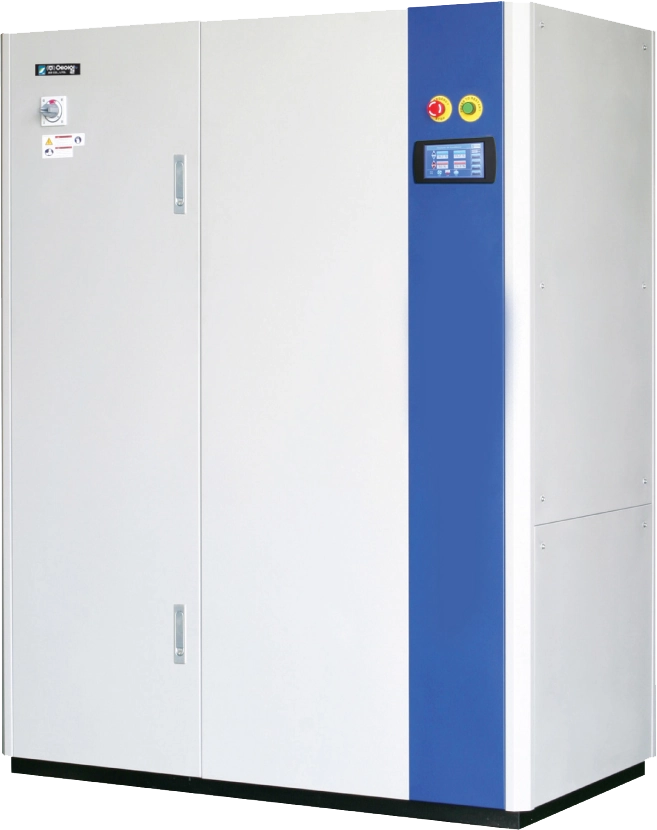

Chilled Water Precision Air Conditioner
Scalable chilled water precision cooling ideal for large-scale data center deployments with centralized chiller plants.
Models
0
Min Capacity
0KBTU
Max Capacity
0KBTU
Power Range
10.55 — 70.32kW
Technical Specifications
All 7 Models
Verified from the official ARP Korea catalog. All models rated at 380V-400V/50Hz.
| Model | Capacity (BTU/h) | Capacity (kW) | Voltage |
|---|---|---|---|
| PA003-C1E5 | 36,000 | 10.55 | 380V-400V/50Hz |
| PA005-C1E5 | 60,000 | 17.58 | 380V-400V/50Hz |
| PA006-C1E5 | 73,000 | 21.4 | 380V-400V/50Hz |
| PA007-C1E5 | 90,000 | 26.37 | 380V-400V/50Hz |
| PA008-C1E5 | 130,000 | 38.1 | 380V-400V/50Hz |
| PA009-C1E5 | 180,000 | 52.75 | 380V-400V/50Hz |
| PA010-C1E5 | 240,000 | 70.32 | 380V-400V/50Hz |
Verified Savings
Energy Efficiency
Proven energy saving options to reduce operating costs.
0%
cost savings
Waste Heat Recovery System
0%
energy savings
Economizer Coil System
0%
annual savings
Energy Saving Chiller System
Built-In Technology
Advanced Features
Every unit includes these standard technology features.
Remote centralized management system
Internet monitoring capability
Micom touch pad control
Low-noise scroll compressor
Swiss Walter Meier electronic-electrode humidifier
Quality Assurance
Certifications & Patents
CE (TUV) certified with 5 patented technologies.
Certification
CE (TUV)
Patents
Patent No. 0653235Frost-prevention
Patent No. 0788739Scattering prevention
Patent No. 0628849Flexible condensing
Patent No. 0756018Condensing maintenance
Patent No. 0575040Condensate drain
Ready to Deploy Chilled Water Precision Air Conditioner?
Get a custom quote with energy saving recommendations tailored to your facility.
