Ethylene Glycol Type

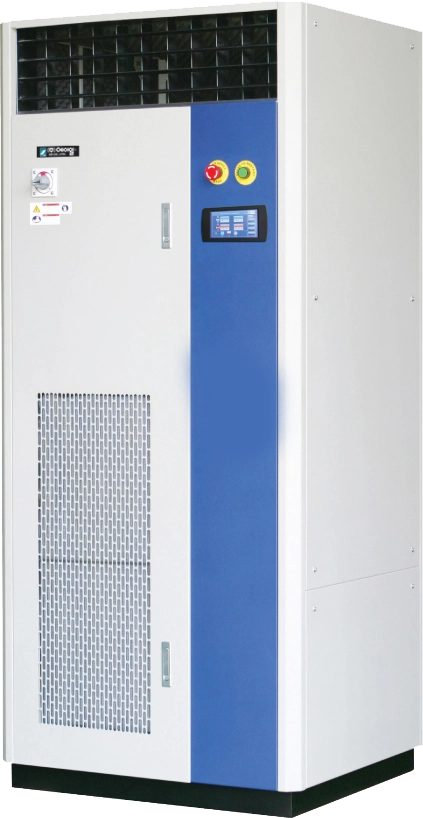

Water Cooled Precision Air Conditioner
High-efficiency water cooled precision cooling using ethylene glycol for data centers and server rooms requiring consistent temperature and humidity control.
Models
0
Min Capacity
0KBTU
Max Capacity
0KBTU
Power Range
4.98 — 16.12kW
Technical Specifications
All 5 Models
Verified from the official ARP Korea catalog. All models rated at 380V-400V/50Hz.
| Model | Capacity (BTU/h) | Capacity (kW) | Voltage |
|---|---|---|---|
| PA03SWRS | 17,000 | 4.98 | 380V-400V/50Hz |
| PA04SWRS | 23,000 | 6.74 | 380V-400V/50Hz |
| PA05SWRS | 29,000 | 8.5 | 380V-400V/50Hz |
| PA06SWRS | 40,000 | 11.72 | 380V-400V/50Hz |
| PA07SWRS | 55,000 | 16.12 | 380V-400V/50Hz |
Verified Savings
Energy Efficiency
Proven energy saving options to reduce operating costs.
0%
cost savings
Waste Heat Recovery System
0%
energy savings
Economizer Coil System
Built-In Technology
Advanced Features
Every unit includes these standard technology features.
Remote centralized management system
Internet monitoring capability
Micom touch pad control
Low-noise scroll compressor
Swiss Walter Meier electronic-electrode humidifier
Quality Assurance
Certifications & Patents
CE (TUV) certified with 5 patented technologies.
Certification
CE (TUV)
Patents
Patent No. 0653235Frost-prevention
Patent No. 0788739Scattering prevention
Patent No. 0628849Flexible condensing
Patent No. 0756018Condensing maintenance
Patent No. 0575040Condensate drain
Ready to Deploy Water Cooled Precision Air Conditioner?
Get a custom quote with energy saving recommendations tailored to your facility.
